EVOL
EVOL-S Pro Filter
raw material: brass
colour: PVD steel
wall mounted: No | high/low-pressure: High Pressure | high spout: No
Article number 527452
Accessories
Recommended Accessoires
Data & Documentation
Data sheet & Documentation
- 2 spray types
- Yes
- 2-handle
- No
- archetype
- Semi-Pro
- bridge
- No
- filter mixer tap
- Yes
- flow rate (actual) at 3 bar (l/min)
- 6 l
instruction manual (PDF)
instruction manual (PDF)
instruction manual (PDF)
Product Information Sheet (PDF)
swivelRange
sideViewProduct2D
sideViewLever2D
BLANCO UNIT
Our BLANCO UNIT recommendations
EVOL-S Pro Filter in BLANCO UNIT

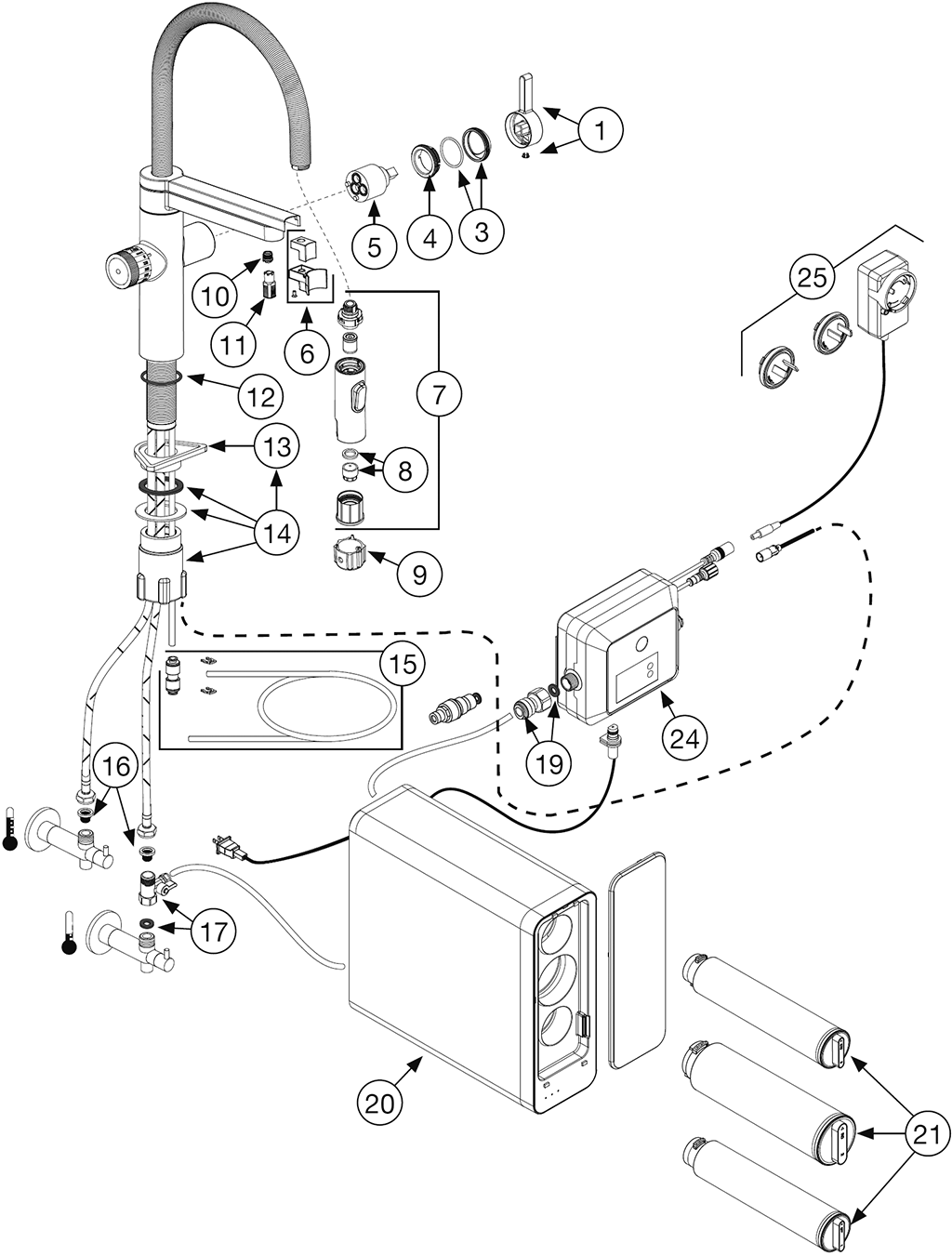

Spare parts
Spare parts
| № | Image | Article numbers & descriptions |
|---|---|---|
1 |  | 124445 Art. ID: 124445 01/2023 |
3 |  | Cartridge cover ring with seal PVD steel Art. ID: 124063 01/2023 |
4 |  | Locknut cartridge TRIMA/FONTAS II Art. ID: 121644 01/2023 |
5 |  | Cartridge HP 35 mm K-35A Art. ID: 121894 01/2023 |
6 |  | Magnet box, magnet and screw EVOL-S Pro Art. ID: 123906 01/2023 |
8 |  | Insert jet regulator HP HC TT and gasket Art. ID: 123908 01/2023 |
9 |  | Key for jet regulator EVOL-S Pro Art. ID: 124087 01/2023 |
11 |  | Jet regulator key for filter water FONTAS II Art. ID: 122870 01/2023 |
12 |  | O-ring 39,42 x 2,62 Art. ID: 123504 01/2023 |
13 |  | Stabilization plate ORION/PALLAS/TERA/URANUS Art. ID: 126945 01/2023 |
14 |  | Assembly set TRIMA/ELOSCOPE-F Art. ID: 121653 01/2023 |
15 |  | Drinking water hose 130cm, connection and 2 clips Art. ID: 123910 01/2023 |
16 |  | 124264 Art. ID: 124264 01/2023 |
19 |  | Set angle joints stainless steel ⅜'' GE (3 pcs.) Art. ID: 123845 01/2023 |
24 |  | Control unit EVOL-S Pro Filter Art. ID: 124088 01/2023 |
 | Cap for lever EVOL-S PVD steel Art. ID: 124090 01/2023 | |
 | Special tool for locknut cartridge TRIMA Art. ID: 121967 01/2023 | |
 | Set hook and loop fastener EVOL-S (2 pcs.) Art. ID: 123512 01/2023 | |
 | Additional mixer taps stabilisation 60mm Art. ID: 513383 01/2023 | |
 | Additional mixer taps stabilisation 75mm Art. ID: 513384 01/2023 | |
 | Flexible sealing tape Art. ID: 120055 01/2023 |
