QUATRUS

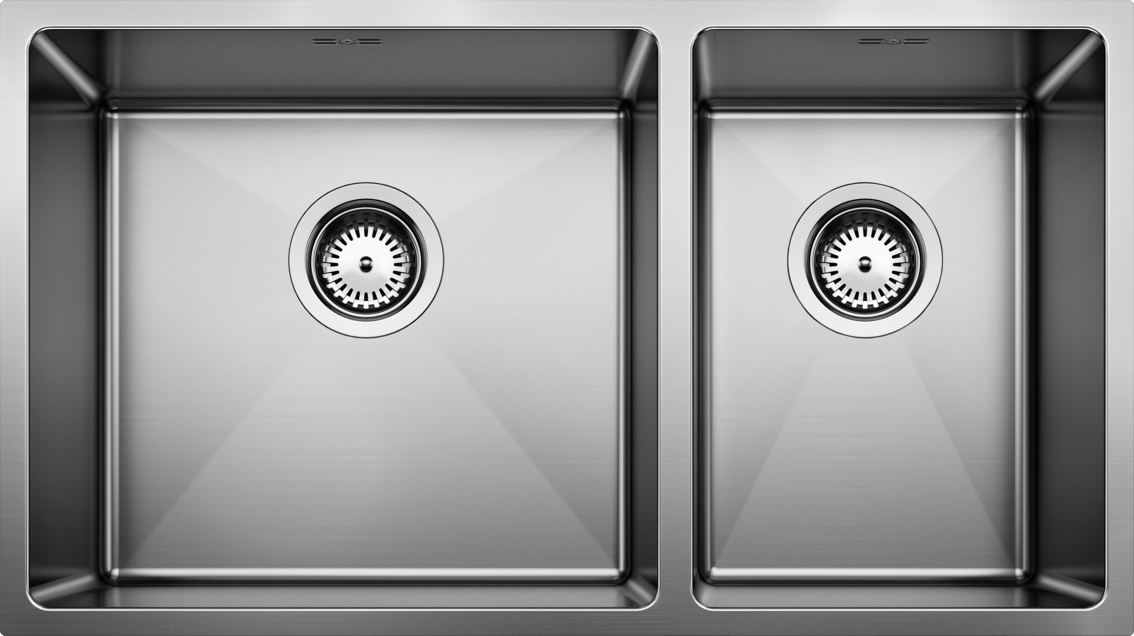

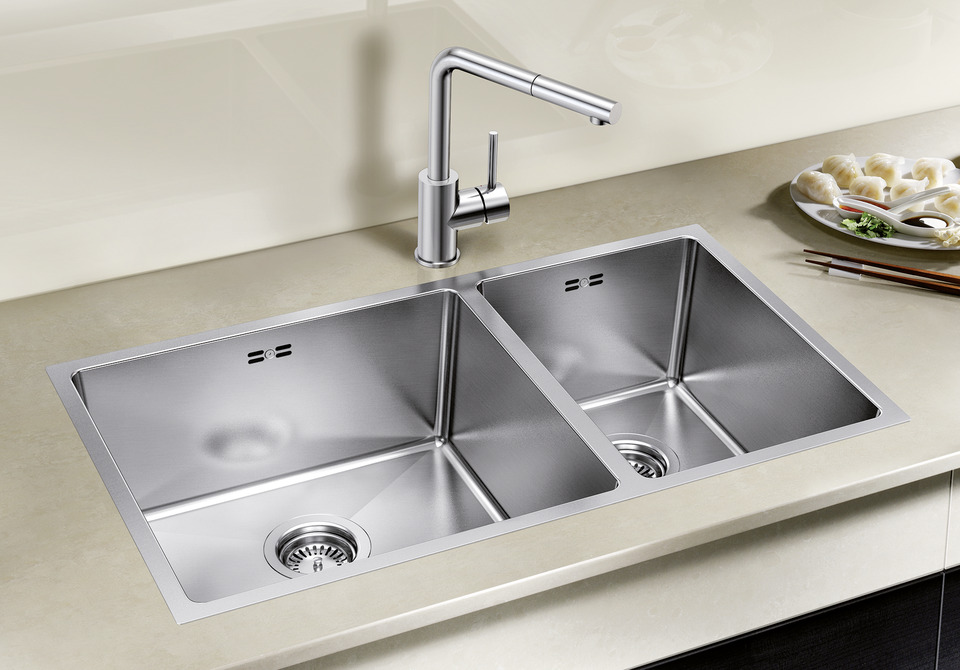

QUATRUS R15 435/285-IU
raw material: Stainless steel
Sink Position: Bowl left
drainboard: No | version: w/o drain remote control | Sink Position: Bowl left | Installation Options: 2 | min. cabinet size: 800 mm
Article number 526882
Accessories
Recommended Accessoires
Data & Documentation
Data sheet & Documentation
- Sink Position
- Bowl left
- apron front
- No
- bowl 1 inside depth
- 200 mm
- bowl 1 inside length
- 435 mm
- bowl 1 inside radius
- 14 mm
- bowl 1 inside width
- 400 mm
Cutout data installation from above (ZIP)
Cutout data substructure (ZIP)
instruction manual (PDF)
Product Information Sheet (PDF)
product2DSupervision
detail2D
frontViewBaseCabinet
sideViewBaseCabinet
product3D
Spare parts
Spare parts
| № | Image | Article numbers & descriptions |
|---|---|---|
 | BG 3 ½ strainer bowl with overflow DN30 Art. ID: 239927 04/2022 | |
 | BG DN 30 overflow rectangular/round Art. ID: 239937 04/2022 | |
 | Extension overflow Ø 30 mm Art. ID: 123882 04/2022 | |
 | 212594 Art. ID: 212594 04/2022 | |
 | 227541 Art. ID: 227541 04/2022 |
